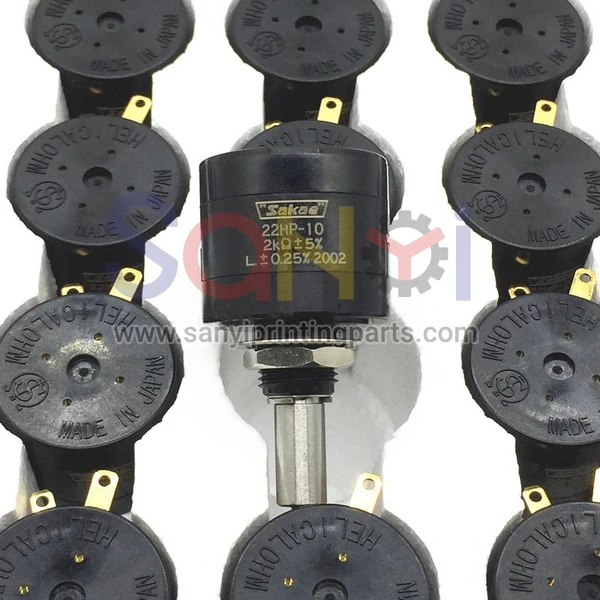

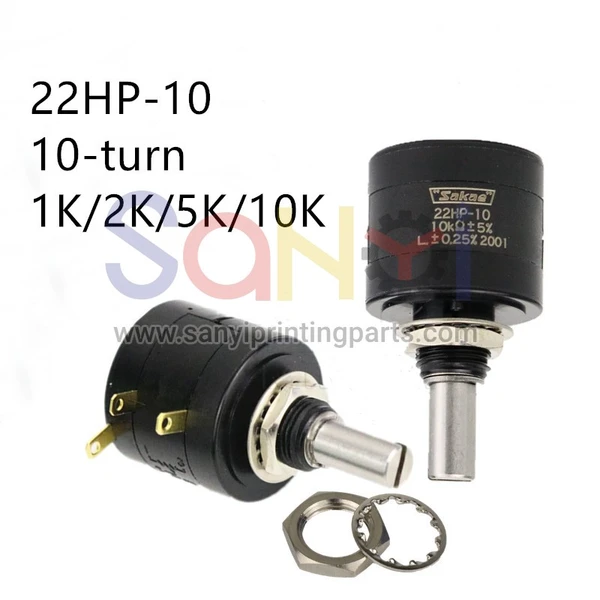

Mitsubishi 22HP-10 2W 10 Turn Wirewound Potentiometer

sku:
Mitsubishi 22HP-10 Potentiometer 1K 2K 5K 10K Original 2W 10 Turn Wirewound Potentiometer


For Mitsubishi Printing Machine


Original new one


Power: 2W

Shaft diameter ¢6mm;


Outer diameter: 22mm;

Resistance tolerance: ±5%;


Independent linear tolerance: ±0.25%;


Temperature coefficient: ±20p.p.m./℃;


Medium withstand voltage: one minute (1000V.A.C.);


Working voltage: 250V;


Expected rotation life: 1,000,000 times;


Electrical stroke: 360°×n±5°(n: number of turns)

Mechanical stroke: 360°×n+10°(n: number of turns)

Description

Mitsubishi 22HP-10 Potentiometer 1K 2K 5K 10K Original 2W 10 Turn Wirewound Potentiometer


For Mitsubishi Printing Machine


Original new one


Power: 2W

Shaft diameter ¢6mm;


Outer diameter: 22mm;

Resistance tolerance: ±5%;


Independent linear tolerance: ±0.25%;


Temperature coefficient: ±20p.p.m./℃;


Medium withstand voltage: one minute (1000V.A.C.);


Working voltage: 250V;


Expected rotation life: 1,000,000 times;


Electrical stroke: 360°×n±5°(n: number of turns)

Mechanical stroke: 360°×n+10°(n: number of turns)
